070508 ECHOMAX ACTIVE-XS-Dual Band radardoelversterker.

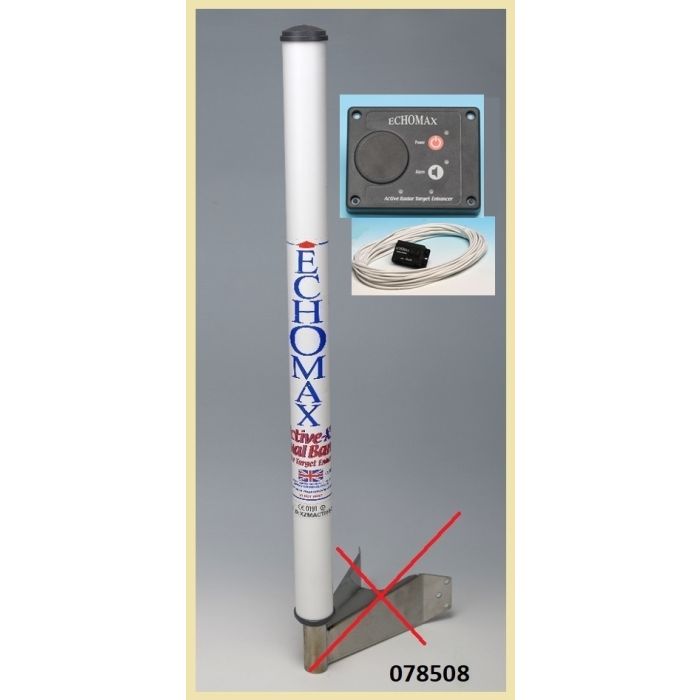

Artikel: 070508 ECHOMAX ACTIVE-XS-Dual Band radardoelversterker (RTE) met waterdicht controlepaneel. Omschrijving: 070508 ECHOMAX ACTIVE-XS-Dual Band (RTE) met waterdicht controlepaneel (#070509) en 24 meter kabel. Deze actieve radarreflector versterken een ontvangen radarsignaal en reflecteren dit waardoor het signaal als een zeer krachtige echo op het radarscherm van deze schepen wordt weergegeven. Een mastvoet (#078550) of mastbeugels (#070505/#070506) zijn niet in deze levering inbegrepen. Deze accessoires zijn tegen meerprijs beschikbaar, zie hiervoor elders in deze artikelgroep. State of the Art Echomax Active-XS-Dual Band Radar Target Enhancer with minuscule current draw of 23mA on stand by and very high X and S band response many times the new ISO 8729-2 standard. Unique visual facility to identify S or X Band Radar paints. Quadruple alarm facility as standard. The Active-XS amplifies and returns a stronger signal and these high responses to both X or S Band Radar increase the likelihood of improving your vessels radar cross section and helps to alert oncoming vessels of your position and detection especially in poor conditions and thereby reduces the risk of collision. Active RTE are increasingly being used on navigation buoys and their estimated power consumption can be seen using this link. Non use of the control box saves 10mA of power. The Active XS has FCC Approval ID: XZMACTIVE-XS - NATO stock number 5841-99-269-3512 SPECIFICATION: - Reception frequency: X Band Radar 9.3 - 9.5 GHz. - S Band Radar 2.9 - 3.1 GHz. - Operating Temperature: - 20 to + 60 degrees C. - Voltage: 12V DC - + 30% -10% (voltage surge and cross polarity protected). - Current consumption 23mA in quiescent state: - Current consumption X Band Radar 190mA when transmitting S Band Radar 155mA. - Position accuracy: Within 1 metre. - EIRP: 1W (typically). X-BAND RADAR SP: - (ISO Standard 7.5 m²). - Zero degrees: 118.33 m². - ± 10 degrees: 65.07 m². - ± 20 degrees: 19.49 m². S-BAND RADAR SPL: (ISO Standard 0.5 m²). Zero degrees: 6.26 m². +/- 10 degrees: 6.44 m². +/-20 degrees: 5.36 m². NB. Production units have the following S-band SPL: - >0 degrees 15.75 m². - ± 10 degrees 16.2 m². - ± 20 degrees 13.4 m². DIMENSIONS: - Antenna length: 685 mm. - Antenna width: 40.5 mm. - Antenna weight ex cable: 573 gms. - Control Box width: 92 mm. - Control Box height: 51 mm. - Control Box depth: 38 mm. - Control box weight: 99 gms. - Cable length: 24m 3 core 0.5 mm². - Cable weight: 967 gms. De aangegeven prijs is inclusief BTW.
