070501 ECHOMAX ACTIVE-X-Band radardoelversterker.

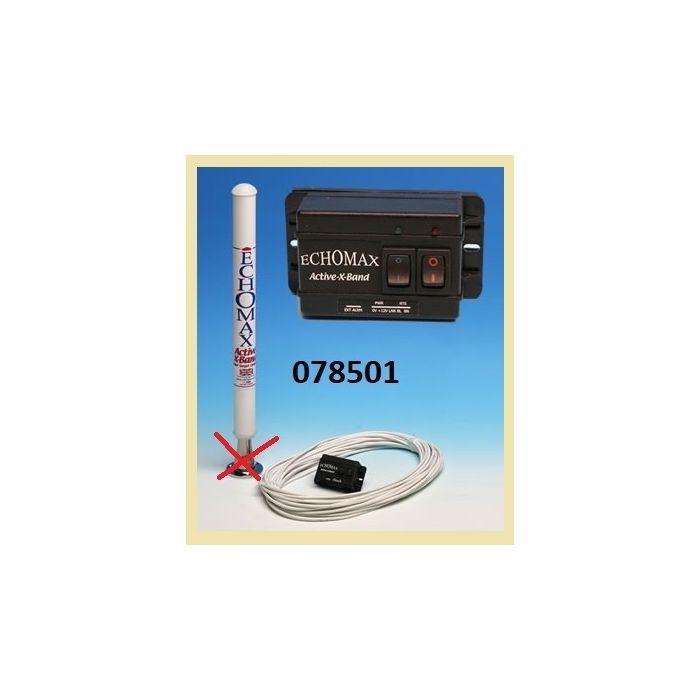

Artikel: 070501 ECHOMAX ACTIVE-X-Band radardoelversterker (RTE) met standaard controlepaneel. Omschrijving: 070501 ECHOMAX ACTIVE-X-Band radardoelversterker (RTE) met standaard controlepaneel (#070507) en 24 meter kabel. Deze actieve radarreflector versterken een ontvangen radarsignaal en reflecteren dit waardoor het signaal als een zeer krachtige echo op het radarscherm van deze schepen wordt weergegeven. Een standaard controlepaneet (#070507) is niet los beschikbaar. Wel is er een waterdicht controlepaneel (#070509) tegen meerprijs beschikbaar. Een mastvoet (#078550) of mastbeugels (#070505 en #070506) zijn niet in deze levering inbegrepen. Deze accessoires zijn tegen meerprijs beschikbaar, zie hiervoor elders in deze artikelgroep. The Active X has FCC Approved ID: XZMACTIVE-X - NATO stock number 5840 99 904 3941 State of the art Echomax Active-X-Band Radar Target Enhancer receives a signal from transmitting radar, amplifies and returns a stronger signal. This increases the likelihood of detection reducing the risk of collision and helps to alert oncoming vessels of your position. Active RTE are increasingly being used on navigation buoys and their estimated power consumption can be seen using this link. Non use of the control box saves 10mA of power. The Active X has FCC Approved ID: XZMACTIVE-X - NATO stock number 5840 99 904 3941 SPECIFICATION: - Reception frequency: X band 9.32 – 9.5 GHz. - Operating Temperature: -20 to +60 degrees C. - Voltage: 12V DC - +30%-10% (voltage surge and cross polarity protected). - Stand by current consumption: 15 mA. - Position accuracy: Within 1 meter. - 5 interrogating radar 23 mA. - 10 32 mA. - EIRP: 1W. DIMENSIONS: - Antenna length: 478 mm. - Antenna width: 40.5 mm. - Antenna weight: 327 gms excluding cable. - Cable length: 24M 2 core 0.5 mm². - Cable weight: 969 gms. - Performance Response. - Zero degrees: 111.36 M² - ± 10 degrees of heel: 78.96 m² - ± 20 degrees of heel: 20.80 m² Exceeds ISO 8729-2 effective 22nd July 09 X Band performance requirements 7.5M2 @+/-10 degrees of heel for motor vessels and +/-20 degrees of heel for sailing vessels. Control Box for interior installation Surface mount: - Surface mount for interior installation or flush mount fitting with optional flush mount kit. - With optional base or rear entry cable facility. - Red switch powers up unit and Red LED indicates power. - Green LED illuminates when being painted by radar. - Green switch controls internal buzzer. - One short flash in 2.4 seconds indicates one radar signal. - Multiple flashes in 2.4 seconds indicates multiple radar signals (Note: 2.4 seconds is time for revolution of normal speed radar. High speed radar will repeat every 1.5 seconds). - Externally accessible fuse. TRIPLE ALARM FACILITY: - Green LED indicates being painted by radar. - Switchable internal buzzer which sounds when being painted by radar. - 8A Volt free external alarm facility. DIMENSIONS: - Antenna length: 478 mm. - Antenna width: 40.5 mm. - Antenna weight: 327 gms excluding cable. - Control Box width: 92 mm. - Control Box height: 51 mm. - Control Box depth: 38 mm. De aangegeven prijs is inclusief BTW.
